Decorative Metal Screen Mesh for Interior Architectural Partitions

Knowing Decorative Metal Screen Mesh Design WW42G-51221

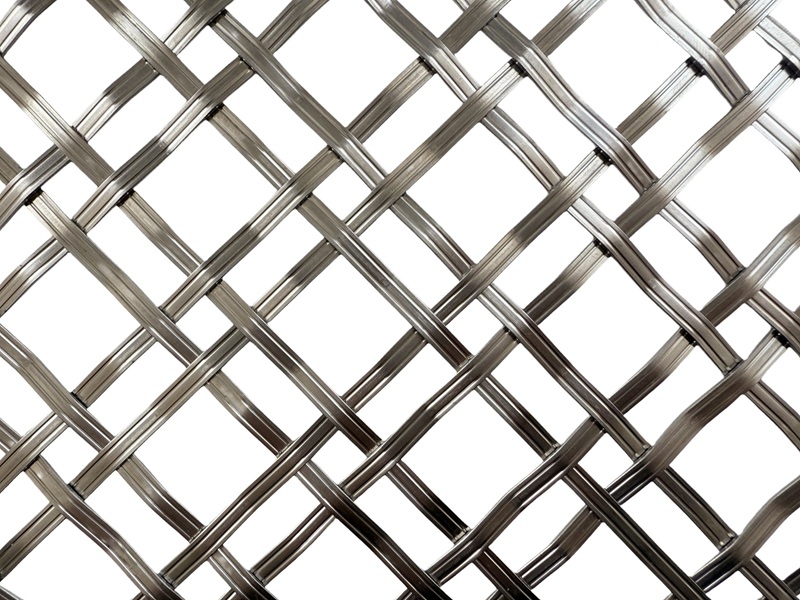

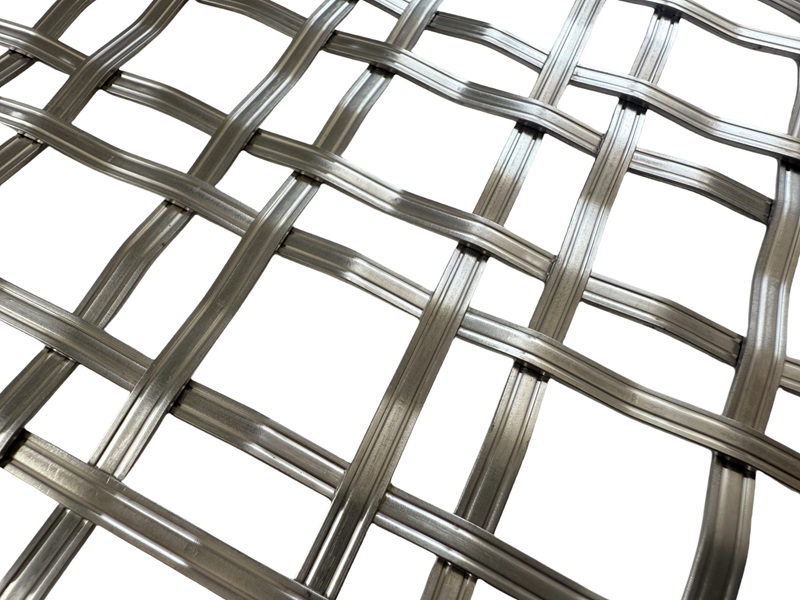

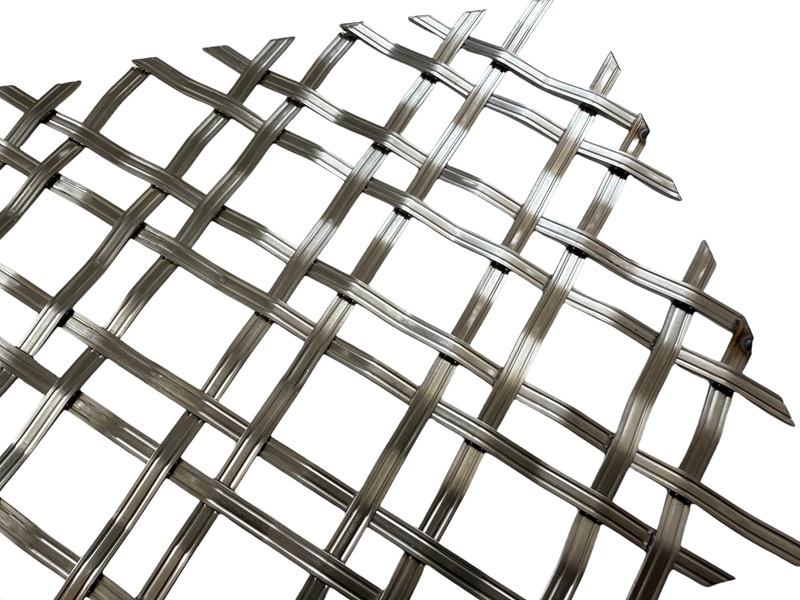

Made of 5x1.2mm high-quality decorative stainless steel metal strips, WW42G-51221 is a typical architectural metal mesh with a relatively high open area of 55.8%. These stainless steel flat strips are pre-formed with two shallow grooves that enhance the depth of this architectural metal design.

The flat metal strips are 5mm wide and 1.2mm thick, pre-crimped at an interval of approximately 13.6mm to facilitate the weaving process and provide uniform rigidity to the structure of this decorative metal design.

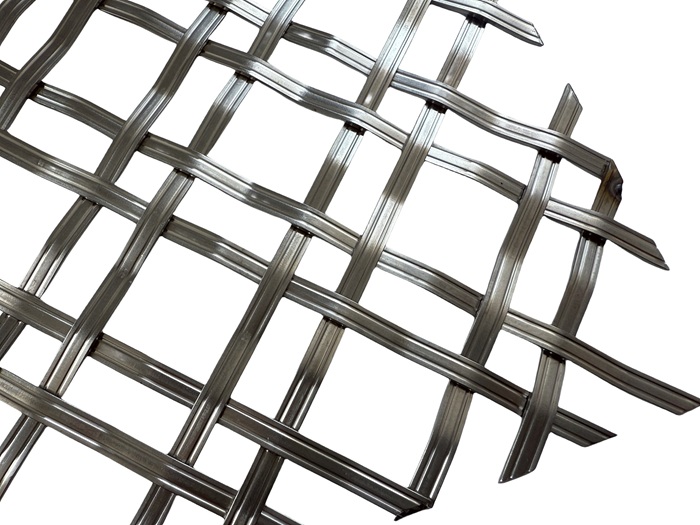

Originally designed as a classic small-square decorative mesh panel, we introduced a creative twist — in every set of three parallel wires, the middle wire is removed, leaving two wires, then repeating the sequence. This selective removal transforms the standard architectural mesh into a unique pattern inspired by our METART-WW42 design but with different decorative metal wires.

The result is a decorative metal screen mesh where the wire intersections form repeating “#” (hashtag) motifs. When four hashtags connect, they create a pattern resembling the traditional Chinese “回” character — blending Western geometry with Eastern cultural symbolism.

Widely used in architectural mesh panels for interior design, this style is especially popular for decorative partitions, screen infills, and ventilation grille designs.

Weaving type: Modified pre-crimped flat wire weave with selective wire removal.

Explanation of the Decorative Metal Screen Pattern Code

WW42- METART Decorative Woven Wire Mesh series WW42

G - Wires with grooves.

512 - 5mm wire width x 1.2mm wire thickness

21 - 21mm big square opening.

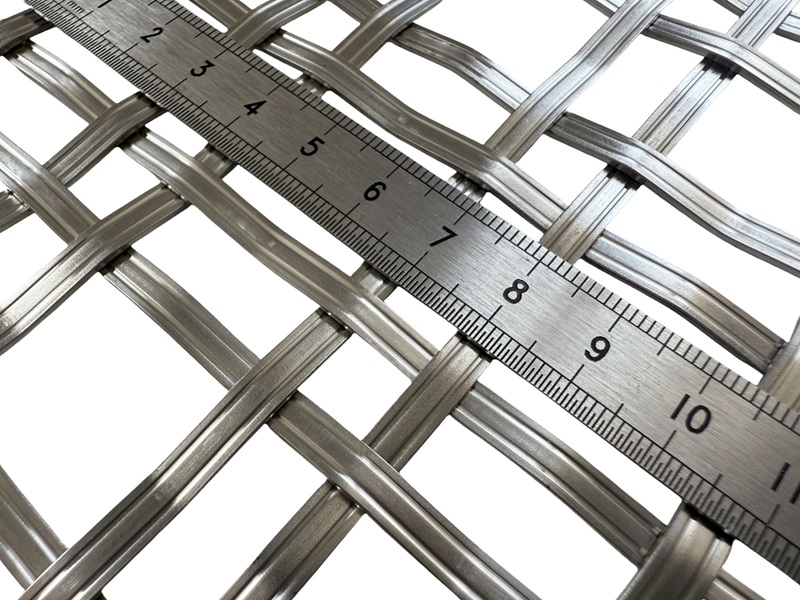

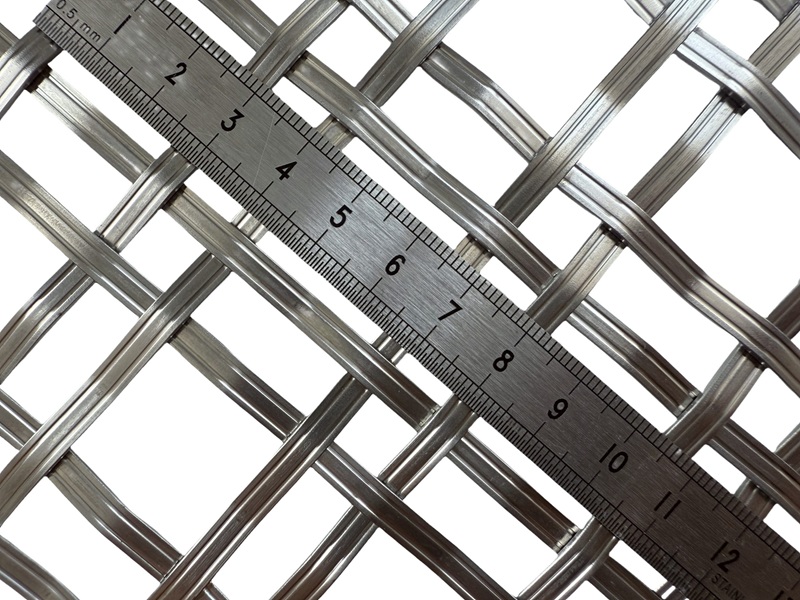

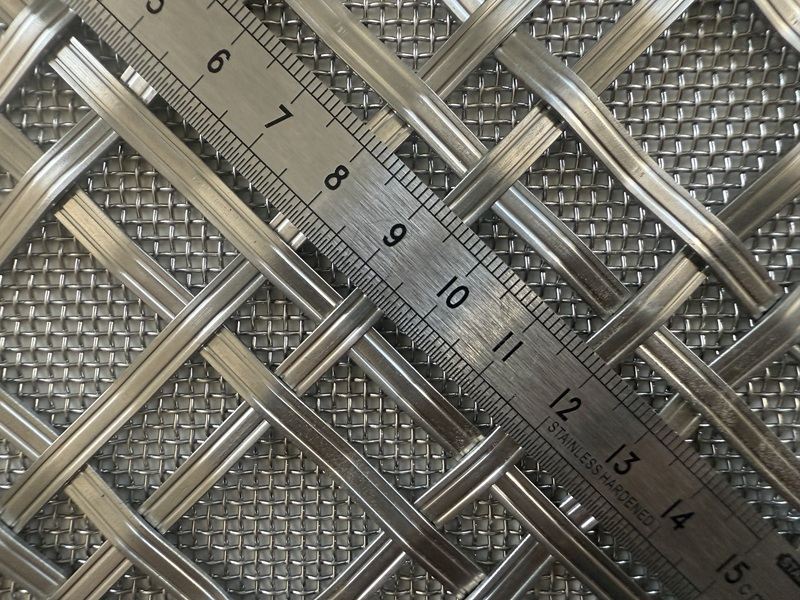

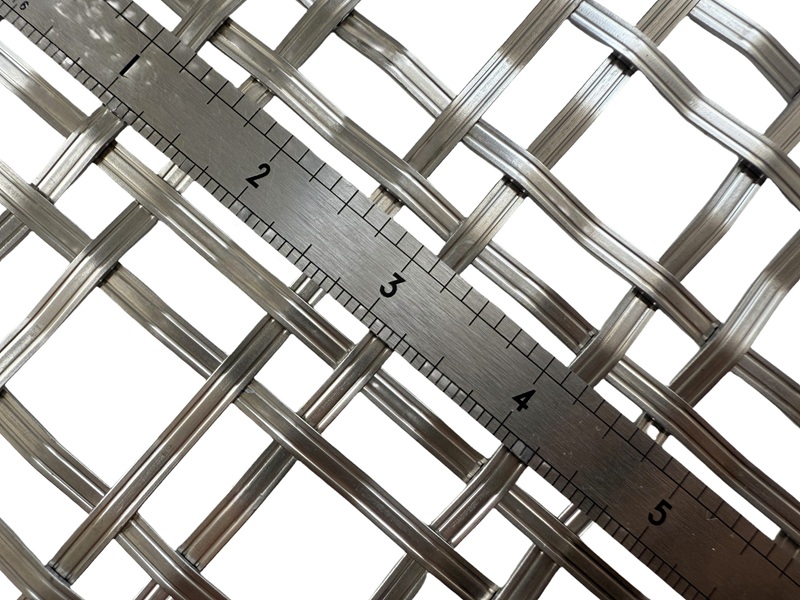

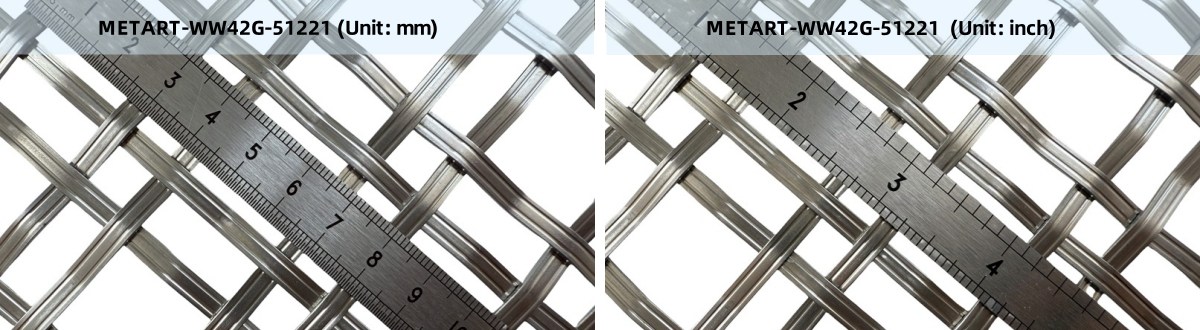

Checking the measurement in the following production picture ( SS304 Decorative Mesh)

Vintage Copper and Copper Alloy Finishes Achieved Through Electroplating

Don't you think the stainless steel mill finish is too ordinary?

Enhance your decorative wire mesh panels with our splendid vintage finishes through an electroplating process of copper and copper alloys.

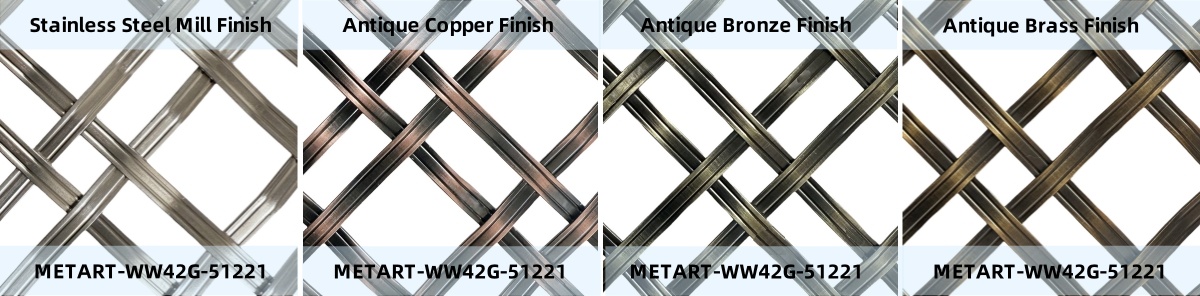

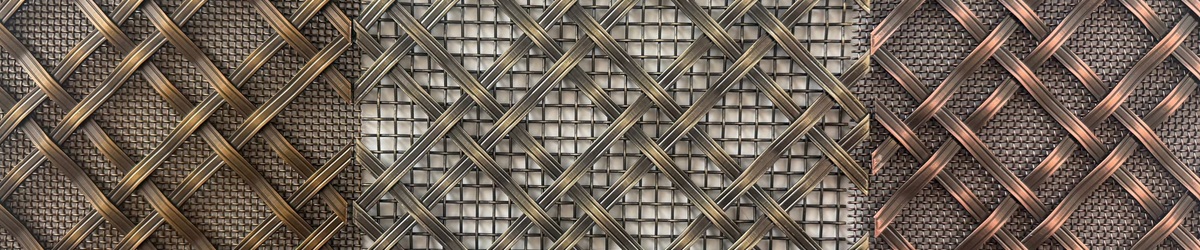

Our most popular finishes include antique copper, antique bronze, and antique brass, just like in the sample pictures below.

For other decorative mesh finishes, such as titanium-based PVD plating or other custom surface treatments, please contact our sales team for a free consultation and quotation.

Technical Details for WW42G-51221 Pattern.

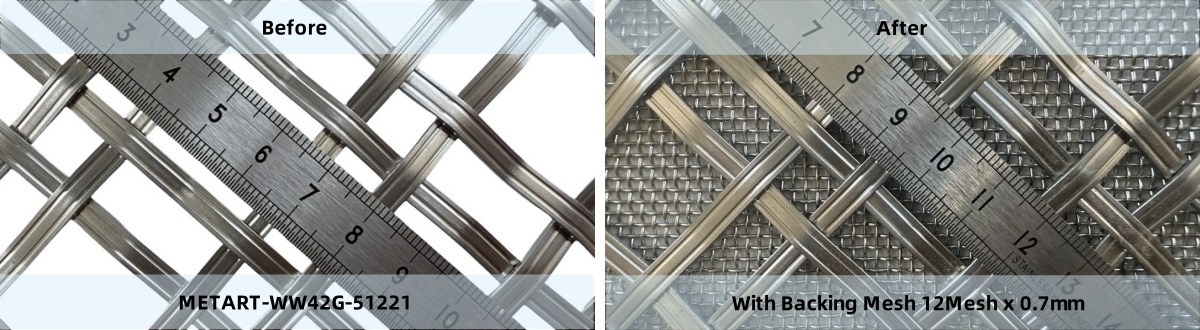

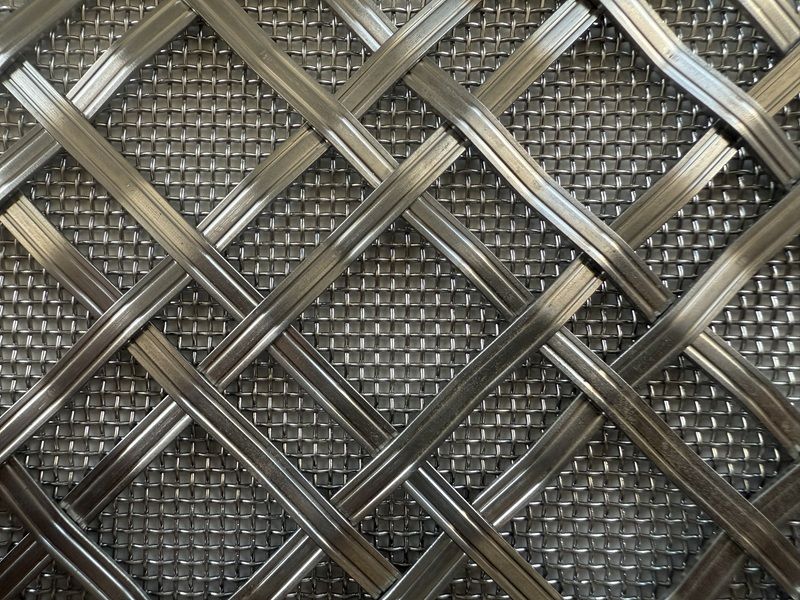

Worried About High Open Area? Use a Fine Backing Mesh for Extra Coverage.

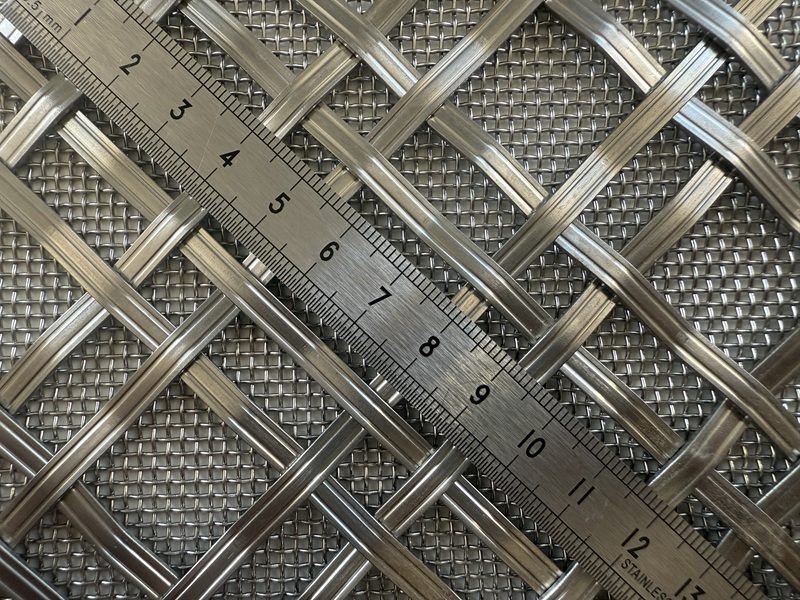

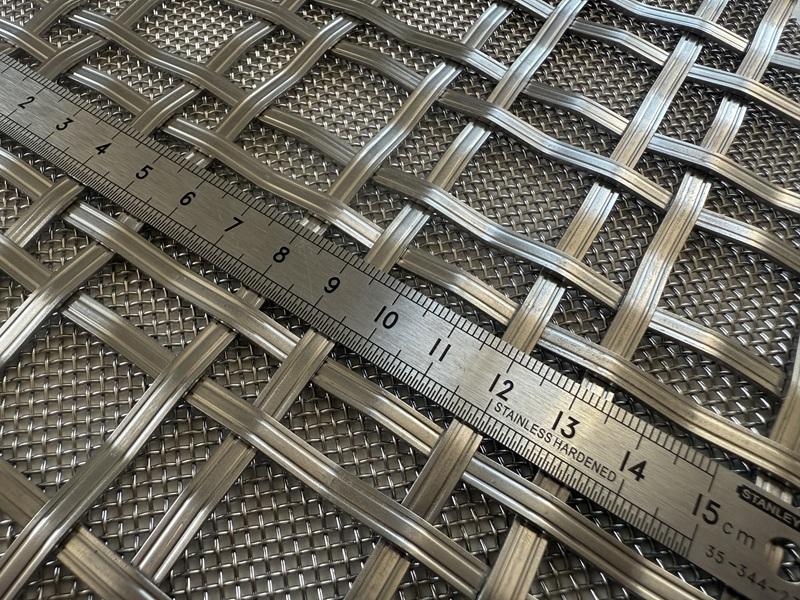

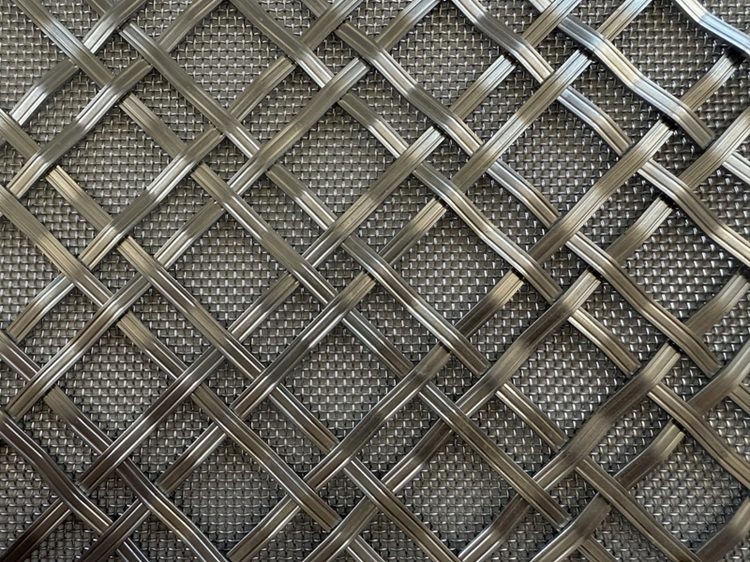

Fine stainless steel backing mesh is the perfect solution when using decorative wire mesh with large apertures.
It enhances safety, improves privacy, and prevents small objects and insects from passing through while preserving the style of your decorative metal screen mesh, especially used as vents covering decorative grilles.

Available Backing Mesh Options:

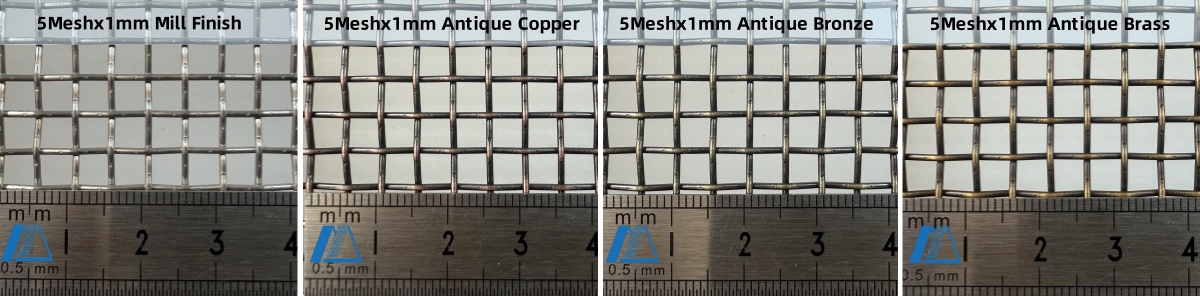

Option 1,   5 Mesh (5 openings per inch, 25.4mm), wire diameter 1.0 mm, opening size 4.08mm

Option 2,   8 Mesh (8 openings per inch), wire diameter 0.9 mm， opening size 2.28mm

Option 3,   10 Mesh (10 openings per inch), wire diameter 0.9 mm, opening size 1.64mm

Option 4,   11 Mesh (11 openings per inch), wire diameter 0.8 mm, opening size 1.51mm

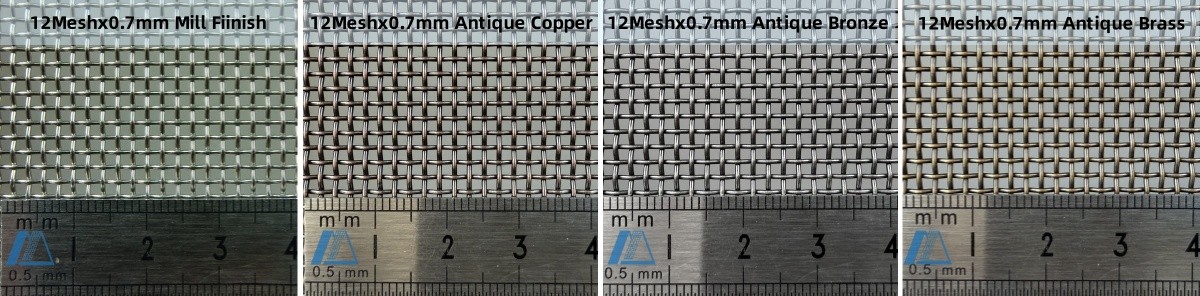

Option 5,   12 Mesh (12 openings per inch), wire diameter 0.7 mm, opening size 1.42mm

These are popular specifications for backing wire mesh. If you want more options, please inquire our sales team to get more available fine wire mesh options or customized specifications.

Sheet Dimensions and General Tolerance

Width: Up to 2000 mm (For easier international transportation, we recommend keeping the width within 1400 mm.)
Length: Up to 4000 mm (For easier international transportation, we recommend keeping the length within 3500 mm.)

General Dimensional Tolerance: -0 / +8mm
If you require precision cutting, please specify this when inquiring. We can use laser cutting technology to achieve a tighter tolerance of ±0.5 to +/- 1mm for this pattern.
